Quality encoders for Motor Industry
At SCANCON we are proud to have been providing customers with high quality encoders for the automatic and motor industry for decades.
The automatic & motor industry is seeing a tremendously exciting surge these years, and we are very happy to provide an essential pillar in that success.
SCANCON has designed rugged and reliable encoder solutions. We offer not only standard size encoders but also a variety of innovative products, custom made for your encoder needs. We offer small, big, high IP 69K and ATEX encoders fitting the motor.
Encoders for Motors
We provide high-precision encoder solutions to you, who are looking for a reliable solution that works perfectly in tandem with your technology devices.
Quality and reliability have always been a hallmark of SCANCON encoders, if you want to hear more about how our encoder solutions as a whole can support you, please do not hesitate contacting us!
Reach us by e-mail: sales-hq@scancon.dk or phone +45 48 17 27 02

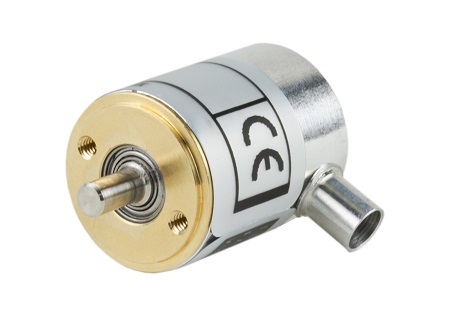

SCA16
Formerly named 2MCA| Diameter: | 16 mm | |
| Resolution: | up to 5,000 ppr | |
| Shaft: | ø 1,5 mm to 4 mm | |
| Temperature: | -20° C to 70° C (operating) | |
| IP rating: | 50, 65 |

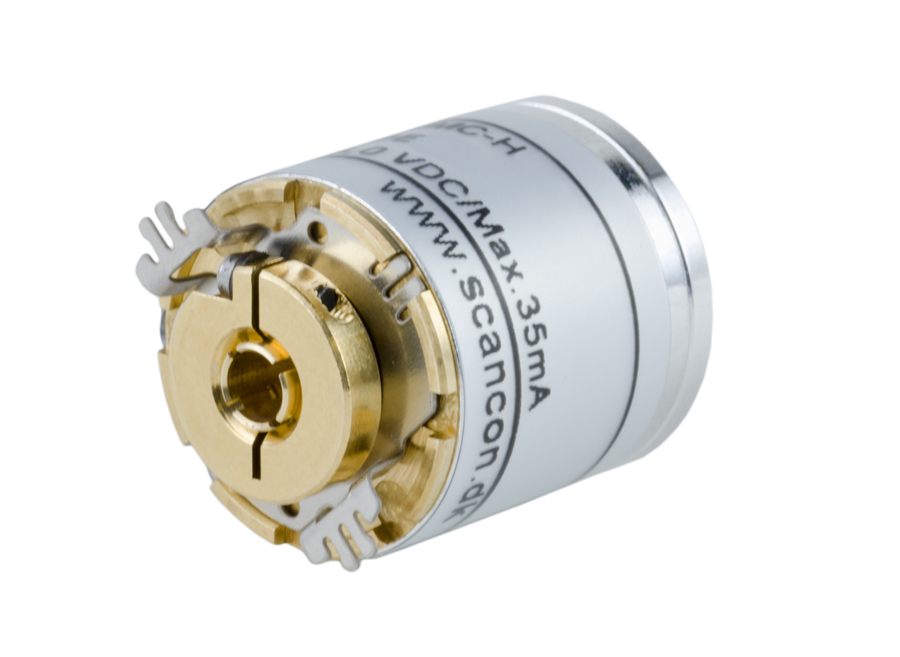

SCH16F
| Diameter: | 16 mm | |
| Resolution: | up to 5,000 ppr | |
| Hollow Shaft: | ø 1,5 mm to 1/8 in | |
| Temperature: | -20° C to 70° C (operating) | |
| IP rating: | 50 |
SCA24-IP65
Formerly named 2RM-IP65| Diameter: | 24 mm | |
| Resolution: | up to 7,500 ppr | |
| Shaft: | ø 4 mm to 6mm | |
| Temperature: | -40° C to 85° C (operating) | |
| IP rating: | 65 |
SCA28
| Diameter: | 28 mm | |
| Resolution: | up to 7,500 ppr | |
| Shaft: | ø 4 mm to 1/4 in | |
| Temperature: | -40° C to 85° C (operating) | |
| IP rating: | 50 (65 option) |
SCA36,5
| Diameter: | 36,5 mm | |
| Resolution: | up to 7,500 ppr | |
| Shaft: | ø 4 mm to 6 mm | |
| Temperature: | -40° C to 85° C (operating) | |
| IP rating: | 64 (50 for IDC option) |
SCA41
| Diameter: | 41 mm | |
| Resolution: | up to 7,500 ppr | |
| Shaft: | ø 6 mm to 1/4 in | |
| Temperature: | -40° C to 85° C (operating) | |
| IP rating: | 64 (50 for IDC option) |
2SUN
| Diameter: | 24 mm | |
| Resolution: | up to 7,500 ppr | |
| Shaft: | ø 6 mm | |
| Temperature: | -40° C to 85° C (operating) | |
| IP rating: | 67 |
2RMHF
| Diameter: | 24 mm | |
| Resolution: | up to 7,500 ppr | |
| Hollow Shaft: | ø 2 mm to 1/4 in | |
| Temperature: | -40° C to 85° C (operating) | |
| IP rating: | 64 (50 for flat cable option) |
SCH24
| Diameter: | 24 mm | |
| Resolution: | up to 7,500 ppr | |
| Hollow Shaft: | ø 2 mm to 4 mm | |
| Temperature: | -40° C to 85° C (operating) | |
| IP rating: | 64 (50 for IDC connector option) |
2RMH-HD
| Diameter: | 24 mm | |
| Resolution: | up to 7,500 ppr | |
| Hollow Shaft: | ø 2 mm to 1/4 in | |
| Temperature: | -40° C to 85° C (operating) | |
| IP rating: | 64 (50 for flat cable option) |
SCH32B
| Diameter: | 30 mm | |
| Resolution: | up to 5,000 ppr | |
| Hollow Shaft: | ø 6 mm to 3/8 in | |
| Temperature: | -40° C to 85° C (operating) | |
| IP rating: | 65 (50 for IDC connector option) |
SCH32F
| Diameter: | 32 mm | |
| Resolution: | up to 5,000 ppr | |
| Hollow Shaft: | ø 5 mm to 3/8 in | |
| Temperature: | -40° C to 85° C (operating) | |
| IP rating: | 65 (50 for IDC connector option) |
SCA50
Formerly named 2R| Diameter: | 50 mm | |
| Resolution: | up to 12,500 ppr | |
| Shaft: | ø 6 mm to 12 mm | |
| Temperature: | -40° C to 85° C (operating) | |
| IP rating: | 65 (67 option) |
SCA50-SR
Formerly named 2RSR - Stainless Steel AISI 303| Diameter: | 50 mm | |
| Resolution: | up to 12,500 ppr | |
| Shaft: | ø 6 mm to 10 mm | |
| Temperature: | -40° C to 85° C (operating) | |
| IP rating: | 67 (Option 69) |
SCA58
Formerly named 2RS| Diameter: | 50 mm | |
| Resolution: | up to 12,500 ppr | |
| Shaft: | ø 6 mm to 10 mm | |
| Temperature: | -40° C to 85° C (operating) | |
| IP rating: | 65 (67 option) |
SCA58-G
| Diameter: | 50 mm | |
| Resolution: | up to 10,000 ppr | |
| Shaft: | ø 1/4 in to 10 mm | |
| Temperature: | -40° C to 85° C (operating) | |
| IP rating: | 65 (66 & 67 options) |
2RK
| Diameter: | 58 mm | |
| Resolution: | up to 12,500 ppr | |
| Shaft: | ø 1/4 in to 10 mm | |
| Temperature: | -40° C to 85° C (operating) | |
| IP rating: | 65 (67 option) |
2R58
| Diameter: | 55 mm | |
| Resolution: | up to 12,500 ppr | |
| Shaft: | ø 6 mm to 10 mm | |
| Temperature: | -40° C to 85° C (operating) | |
| IP rating: | 65 (67 option) |
SCA80
Formerly named 2RP| Diameter: | 80 mm | |
| Resolution: | up to 10,000 ppr | |
| Shaft: | ø 10 mm | |
| Temperature: | -40° C to 85° C (operating) | |
| IP rating: | 65 |
2Q
| Diameter: | 2.5 inch square | |
| Resolution: | up to 10,000 ppr | |
| Shaft: | ø 1/4 in to 10 mm | |
| Temperature: | -40° C to 85° C (operating) | |
| IP rating: | 65 (66 & 67 option) |
2RHIDS -encoder with measuring wheel
Encoder with measuring wheel| Diameter: | Dual shaft encoder | |
| Resolution: | up to 9,000 ppr | |
| Shaft: | ø 3/8 in | |
| Temperature: | -40° C to 75° C (operating) | |
| IP rating: | 64 | |
| Measuring wheel : | See accessories |

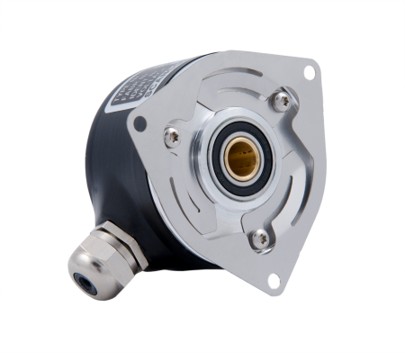

SCH50B
Formerly named 2RH (Through hollow bore)| Diameter: | 50 mm | |
| Resolution: | up to 12,500 ppr | |
| Hollow Shaft: | ø 6 mm and 8 mm | |
| Temperature: | -40° C to 85° C (operating) | |
| IP rating: | 65 |
SCH50F
Formerly named 2RHF| Diameter: | 50 mm | |
| Resolution: | up to 12,500 ppr | |
| Hollow Shaft: | ø 6 mm and 8 mm | |
| Temperature: | -40° C to 85° C (operating) | |
| IP rating: | 65 (66 & 67 options) |
SCH50IB-SR
Stainless Steel - AISI 303| Diameter: | 50 mm | |
| Resolution: | up to 9,000 ppr | |
| Hollow Shaft: | ø 8 mm to 16 mm | |
| Temperature: | -40° C to 85° C (operating) | |
| IP rating: | 67 |
SCH50IF-SR
Formerly named 2RHIF-SR Stainless Steel - AISI 303| Diameter: | 50 mm | |
| Resolution: | up to 9,000 ppr | |
| Hollow Shaft: | ø 8 mm to 16 mm | |
| Temperature: | -40° C to 85° C (operating) | |
| IP rating: | IP 67 |
2RMHD
| Diameter: | 60 mm square | |
| Resolution: | up to 7,500 ppr | |
| Shaft: | ø 12 mm and 15 mm | |
| Temperature: | -40° C to 85° C (operating) | |
| IP rating: | 65 |

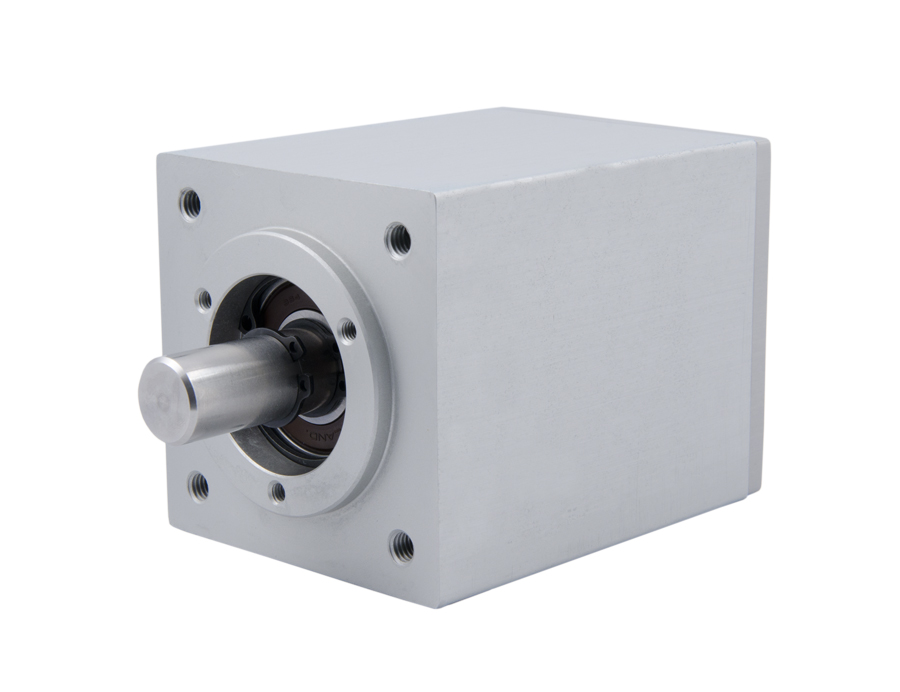

2RHDS
| Diameter: | 70 mm square | |
| Resolution: | up to 12,500 ppr | |
| Shaft: | ø 12 mm to 15 mm | |
| Temperature: | -40° C to 85° C (operating) | |
| IP rating: | 65 (67 & 68 option) |
SCA115
| Diameter: | 115 mm | |
| Resolution: | up to 12,500 ppr | |
| Shaft: | ø 11 mm | |
| Temperature: | -40° C to 85° C (operating) | |
| IP rating: | 66 (65 & 67 option) |
2RCI
| Diameter: | 115 mm | |
| Resolution: | up to 12,500 ppr | |
| Shaft: | ø 11 mm | |
| Temperature: | -40° C to 85° C (operating) | |
| IP rating: | 66 |
SCH68B
through hollow bore| Diameter: | 68 mm | |
| Resolution: | up to 12,500 ppr | |
| Hollow Shaft: | ø 16 mm to 1 in | |
| Temperature: | -40° C to 85° C (operating) | |
| IP rating: | 65 (66 & 67 option) |
SCH80
| Diameter: | 80 mm | |
| Resolution: | up to 12,500 ppr | |
| Hollow Shaft: | ø 16 mm | |
| Temperature: | -40° C to 85° C (operating) | |
| IP rating: | 66 (65 & 67 option) |
SCH120M
Magnetic| Length: | 120 mm | |
| Resolution: | up to 8192 ppr | |
| Temperature: | -40° C to +105° C (operating) | |
| IP rating: | 66 |
SCH98M
Hollow bore| Diameter: | 98 mm | |
| Resolution: | up to 8192 ppr | |
| Hollow Shaft: | ø 12 mm to ø 17 mm | |
| Temperature: | -40° C to +105° C (operating) | |
| IP rating: | 66 |
SCH98M-01
Hollow bore| Diameter: | 98 mm | |
| Resolution: | up to 8192 ppr | |
| Hollow Shaft: | ø 12 mm to ø 17 mm | |
| Temperature: | -40° C to +105° C (operating) | |
| IP rating: | 66 |
SCA24EX
Formerly named 2MCEX-A| Diameter: | 24 mm | |
| Resolution: | up to 3,600 ppr | |
| Shaft: | ø 4 mm to ø 6 mm | |
| Temperature: | -40° C to 70° C (operating) | |
| IP rating: | 67 (64, 65 & 66 options) | |
| Certifications: | Ex db IIC |
2QEX-A
| Diameter: | 2.5 in or 2.65 in square | |
| Resolution: | up to 12,500 ppr | |
| Shaft: | ø 1/4 in to 10 mm | |
| Temperature: | -40° C to 70° C (operating) | |
| IP rating: | 67 | |
| Certifications: | Ex nA IIC |
2CEX-A
| Diameter: | 68 mm | |
| Resolution: | up to 10,000 ppr | |
| Shaft: | ø 10 mm | |
| Temperature: | -40° C to 70° C (operating) | |
| IP rating: | 64 (65, 66 & 67 option) | |
| Certifications: | Ex nA IIC |
2REX-A
| Diameter: | 68 mm | |
| Resolution: | up to 10,000 ppr | |
| Shaft: | ø 10 mm and 5/8 in | |
| Temperature: | -40° C to 70° C (operating) | |
| IP rating: | 66 (64, 65 & 67 option) | |
| Certifications: | Ex db IIC |
2REX-A-SA
Stainless Steel AISI 316| Diameter: | 68 mm | |
| Resolution: | up to 10,000 ppr | |
| Shaft: | ø 10 mm to 11 mm | |
| Temperature: | -40° C to 70° C (operating) | |
| IP rating: | 66 (67 option) | |
| Certifications: | Ex db IIC |
2REXI-A
| Diameter: | 68 mm | |
| Resolution: | up to 10,000 ppr | |
| Shaft: | ø 10 mm to 11 mm | |
| Temperature: | -40° C to 75° C (operating) | |
| IP rating: | 66 (67 option) | |
| Certifications: | Ex db IIB |
2REXI-A-SA
Stainless Steel AISI 316| Diameter: | 68 mm | |
| Resolution: | up to 10,000 ppr | |
| Shaft: | ø 8 mm to 16 mm | |
| Temperature: | -40° C to 75° C (operating) | |
| IP rating: | 66 (67 option) | |
| Certifications: | Ex db IIB |
SCH24EX
Formerly named 2MCEX-H| Diameter: | 24 mm | |
| Resolution: | up to 3,600 ppr | |
| Hollow Shaft: | ø 2 mm to 1/8 in | |
| Temperature: | -40° C to 70° C (operating) | |
| IP rating: | 67 (64, 65 & 66 options) | |
| Certifications: | Ex db IIC |
2CEX-H
| Diameter: | 68 mm | |
| Resolution: | up to 10,000 ppr | |
| Shaft: | ø10 mm and ø16 mm | |
| Temperature: | -40° C to 70° C (operating) | |
| IP rating: | 64 (65, 66 & 67 option) | |
| Certifications: | Ex nA IIC |
2REX-H
| Diameter: | 68 mm | |
| Resolution: | up to 10,000 ppr | |
| Hollow Shaft: | ø 10 mm to 15 mm | |
| Temperature: | -40° C to 70° C (operating) | |
| IP rating: | 66 (67 option) | |
| Certifications: | Ex db IIC |
2REX-H-SA
Stainless Steel AISI 316| Diameter: | 68 mm | |
| Resolution: | up to 10,000 ppr | |
| Hollow Shaft: | ø 10 mm to 15 mm | |
| Temperature: | -40° C to 70° C (operating) | |
| IP rating: | 66 (67 option) | |
| Certifications: | Ex db IIC |
2REXI-H
| Diameter: | 68 mm | |
| Resolution: | up to 10,000 ppr | |
| Hollow Shaft: | ø 8 mm | |
| Temperature: | -40° C to 75° C (operating) | |
| IP rating: | 65 (66 & 67 option) | |
| Certifications: | Ex db IIB |
SCH86BEX
| Diameter: | 86 mm | |
| Resolution: | up to 10,000 ppr | |
| Hollow Shaft: | ø 5/8 in to 1 in | |
| Temperature: | -40° C to 70° C (operating) | |
| IP rating: | 67 (65 & 66 option) | |
| Certifications: | Ex db IIC Class I Div. 2, Zone 1 |
SCH86BEX-Magnetic
| Diameter: | 86 mm | |
| Resolution: | up to 8192 ppr | |
| Hollow Shaft: | ø 5/8 in to 1 in | |
| Temperature: | -50° C to 70° C (operating) | |
| IP rating: | 67 (65, 66, 68 option) | |
| Certifications: | Ex db IIC Class I Div. 2, Zone 1 |
SCH86BEX DrawWorks Removable End Cap
| Diameter: | 86 mm | |
| Resolution: | up to 10,000 ppr | |
| Hollow Shaft: | Standard 1 in - 14UNS threaded bore | |
| Temperature: | -40° C to 70° C (operating) | |
| IP rating: | 67 (65 & 66 option) | |
| Certifications: | Ex db IIC Class I Div. 2, Zone 1 |
SCH86BEX-FO
Fiber optic encoder| Diameter: | 86 mm | |
| Resolution: | up to 10,000 ppr | |
| Hollow Shaft: | ø 5/8 in to 1 in | |
| Temperature: | -40° C to 70° C (operating) | |
| IP rating: | 67 (65 & 66 option) | |
| Certifications: | Ex db IIC Class I Div. 2, Zone 1 |
SCH86FEX
| Diameter: | 86 mm | |
| Resolution: | up to 10,000 ppr | |
| Hollow Shaft: | ø 20 mm to 1 in | |
| Temperature: | -40° C to 70° C (operating) | |
| IP rating: | 67 (65 & 66 option) | |
| Certifications: | Ex db IIC, Class I Div. 2, Zone 1 |
SCH86BEX with Cable
| Diameter: | 86 mm | |
| Resolution: | up to 10,000 ppr | |
| Hollow Shaft: | ø 5/8 in to 1 in | |
| Temperature: | -40° C to 70° C (operating) | |
| IP rating: | 67 (65 & 66 option) | |
| Certifications: | Ex db IIC, Class I Div. 2, Zone 2, Group IIC |
REXM-A-SA
Stainless Steel - For mining applications| Diameter: | 68 mm | |
| Resolution: | up to 10,000 ppr | |
| Shaft: | ø 10 mm to 11 mm | |
| Temperature: | -40° C to 70° C (operating) | |
| IP rating: | 66 (67 option) | |
| Certificates: | Ex db I Mb |
REXM-H-SA
Stainless Steel - For mining applications| Diameter: | 68 mm | |
| Resolution: | up to 10,000 ppr | |
| Hollow Shaft: | ø 10 mm to 15 mm | |
| Temperature: | -40° C to 70° C (operating) | |
| IP rating: | 66 (67 option) | |
| Certificates: | Ex db I Mb |
SCH86BXM
Stainless Steel - For mining application| Diameter: | 86 mm | |
| Resolution: | up to 10,000 ppr | |
| Hollow Shaft: | Ø 5/8 in to 1 in | |
| Temperature: | -40° C to 70° C (operating) | |
| IP rating: | 65 (66 & 67 options) | |
| Certificates: | Ex db I Mb |
