Encoders for Harsh Environment Solutions
Scancon has long been an industry leader in providing encoders to the Oil & Gas Industry. With an established expertise in designing harsh environment encoders, Scancon offers a wide variety of ATEX-certified incremental and absolute EX-Proof encoders and related products.
SCA24EX
Formerly named 2MCEX-A| Diameter: | 24 mm | |
| Resolution: | up to 3,600 ppr | |
| Shaft: | ø 4 mm to ø 6 mm | |
| Temperature: | -40° C to 70° C (operating) | |
| IP rating: | 67 (64, 65 & 66 options) | |
| Certifications: | Ex db IIC |
SCH24EX
Formerly named 2MCEX-H| Diameter: | 24 mm | |
| Resolution: | up to 3,600 ppr | |
| Hollow Shaft: | ø 2 mm to 1/8 in | |
| Temperature: | -40° C to 70° C (operating) | |
| IP rating: | 67 (64, 65 & 66 options) | |
| Certifications: | Ex db IIC |
2QEX-A
| Diameter: | 2.5 in or 2.65 in square | |
| Resolution: | up to 12,500 ppr | |
| Shaft: | ø 1/4 in to 10 mm | |
| Temperature: | -40° C to 70° C (operating) | |
| IP rating: | 67 | |
| Certifications: | Ex nA IIC |
2REX-A
| Diameter: | 68 mm | |
| Resolution: | up to 10,000 ppr | |
| Shaft: | ø 10 mm and 5/8 in | |
| Temperature: | -40° C to 70° C (operating) | |
| IP rating: | 66 (64, 65 & 67 option) | |
| Certifications: | Ex db IIC |
2REX-A-SR
Stainless Steel AISI 303| Diameter: | 68 mm to 115 mm | |
| Resolution: | up to 10,000 ppr | |
| Shaft: | ø 10 mm to 5/8 in | |
| Temperature: | -40° C to 70° C (operating) | |
| IP rating: | 66 (67 option) | |
| Certifications: | Ex db IIC |
2REXI-A
| Diameter: | 68 mm | |
| Resolution: | up to 10,000 ppr | |
| Shaft: | ø 10 mm to 11 mm | |
| Temperature: | -40° C to 75° C (operating) | |
| IP rating: | 66 (67 option) | |
| Certifications: | Ex db IIB |

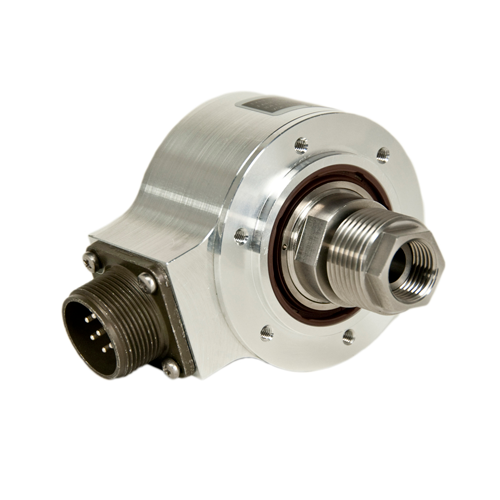

SCH68DW
through hollow bore w/ adaptor| Diameter: | 68 mm | |
| Resolution: | up to 12,500 ppr | |
| Hollow Shaft: | ø 20 mm and 1 in | |
| Temperature: | -40° C to 85° C (operating) | |
| IP rating: | 65 (66 & 67 option) |
2REX-H
| Diameter: | 68 mm | |
| Resolution: | up to 10,000 ppr | |
| Hollow Shaft: | ø 10 mm to 15 mm | |
| Temperature: | -40° C to 70° C (operating) | |
| IP rating: | 66 (67 option) | |
| Certifications: | Ex db IIC |
2REX-H-SR
Stainless Steel AISI 303| Diameter: | 68 mm | |
| Resolution: | up to 10,000 ppr | |
| Hollow Shaft: | ø 10 mm to 15 mm | |
| Temperature: | -40° C to 70° C (operating) | |
| IP rating: | 66 (67 option) | |
| Certifications: | Ex db IIC |
SCH86BEX
| Diameter: | 86 mm | |
| Resolution: | up to 10,000 ppr | |
| Hollow Shaft: | ø 5/8 in to 1 in | |
| Temperature: | -40° C to 70° C (operating) | |
| IP rating: | 67 (65 & 66 option) | |
| Certifications: | Ex db IIC Class I Div. 2, Zone 1 |
SCH86BEX DrawWorks Removable End Cap
| Diameter: | 86 mm | |
| Resolution: | up to 10,000 ppr | |
| Hollow Shaft: | Standard 1 in - 14UNS threaded bore | |
| Temperature: | -40° C to 70° C (operating) | |
| IP rating: | 67 (65 & 66 option) | |
| Certifications: | Ex db IIC Class I Div. 2, Zone 1 |
EX-Proof Fiber Optic Junction Box
| Types: | Transmitter / Receiver | |
| Codes: | Incremental | |
| Input/output: | Digital to Fiber Optic / Fiber Optic to Digital |
Signal Converter
| Types: | Transmitter / Receiver | |
| Codes: | Incremental | |
| Input/output: | Digital to Fiber Optic / Fiber Optic to Digital |
