Encoders - Wind Power

Encoders for the wind industry



Scancon has provided encoder solutions to the Wind Industry for over a decade. Known for its design expertise, Scancon offers not only standard Wind Industry encoders but also a variety of innovative incremental, absolute, Fiber Optic, and Intelligent encoder solutions.





Encoders and sensors for wind energy applications


Experience the power of wind encoders – precision technology designed to capture the essence of every gust. Our wind encoders provide unparalleled accuracy, ensuring you harness the true potential of wind energy. Elevate your projects with cutting-edge solutions that redefine performance and reliability. Embrace the future of renewable energy with our advanced wind encoders.



Boost wind power plant efficiency and extend its lifespan with our dependable encoder solutions. Our advanced components are intricately designed for seamless integration—mechanically, electrically, and with the right signals and interfaces—simplifying the path to digitalization. This synergy optimizes performance. Invest in groundbreaking technology for a greener and more sustainable future.



Different wind applications and recommendations for Pitch Control Systems, their Yaw Control Systems, and for their Generator feedback.



Contact us here: sales-hq@scancon.dk or direct: +45 4817 2702

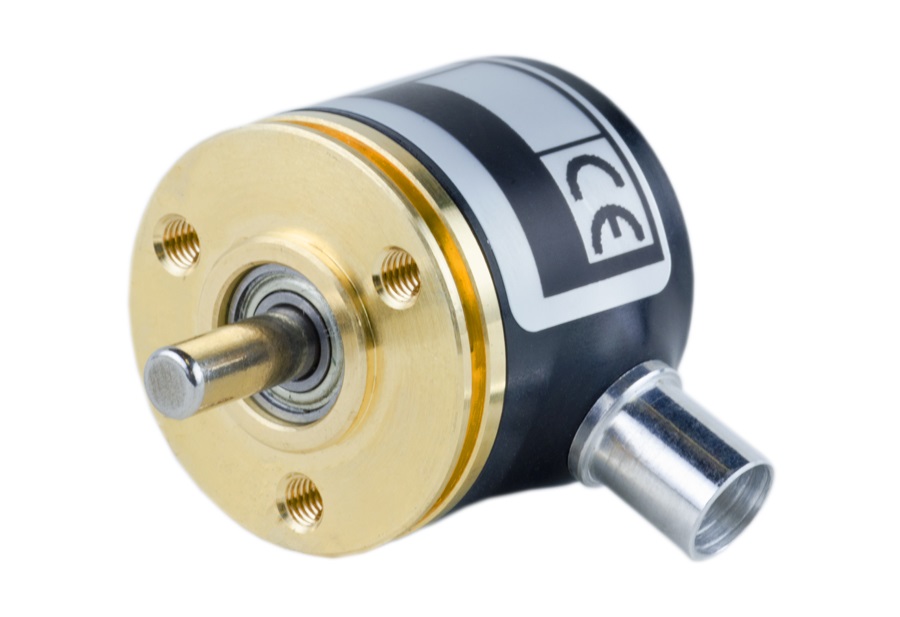

SCA24

Formerly named 2RM
Diameter: 24 mm
Resolution: up to 7,500 ppr
Shaft: ø 4 mm to 1/4 in
Temperature: -40° C to 85° C (operating)
IP rating: 65

SCH32B

Diameter: 30 mm
Resolution: up to 5,000 ppr
Hollow Shaft: ø 6 mm to 3/8 in
Temperature: -40° C to 85° C (operating)
IP rating: 65 (50 for IDC connector option)

SCH32F

Diameter: 32 mm
Resolution: up to 5,000 ppr
Hollow Shaft: ø 5 mm to 3/8 in
Temperature: -40° C to 85° C (operating)
IP rating: 65 (50 for IDC connector option)

SCH80

Diameter: 80 mm
Resolution: up to 12,500 ppr
Hollow Shaft: ø 16 mm
Temperature: -40° C to 85° C (operating)
IP rating: 66 (65 & 67 option)

SCH94

Cylindrical and cone - Screw mount
Diameter: 94 mm
Resolution: up to 12,500 ppr
Hollow Shaft: ø 12 mm to 17 mm
Temperature: -40° C to 85° C (operating)
IP rating: 66 (65 & 67 options)

SCA115

Diameter: 115 mm
Resolution: up to 12,500 ppr
Shaft: ø 11 mm
Temperature: -40° C to 85° C (operating)
IP rating: 66 (65 & 67 option)

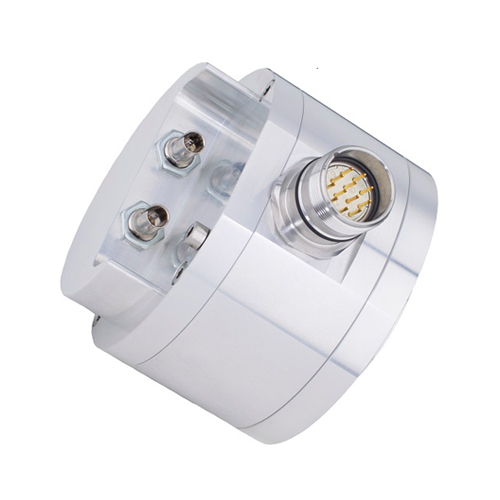

SCH94FO

Diameter: 94 mm
Resolution: up to 12.500 ppr
Hollow Shaft: ø 12 mm to ø 17 mm
Temperature: -40° C to 85° C (operating)
IP rating: 65 (66)

SCA94DD

eCode
Diameter: 94 mm
Resolution: Semi-absolute singleturn
Shaft: ø 10 mm
Protocol: Profibus
Temperature: -40° C to 70° C (operating)
IP rating: 67 / Nema 6 (approx.)

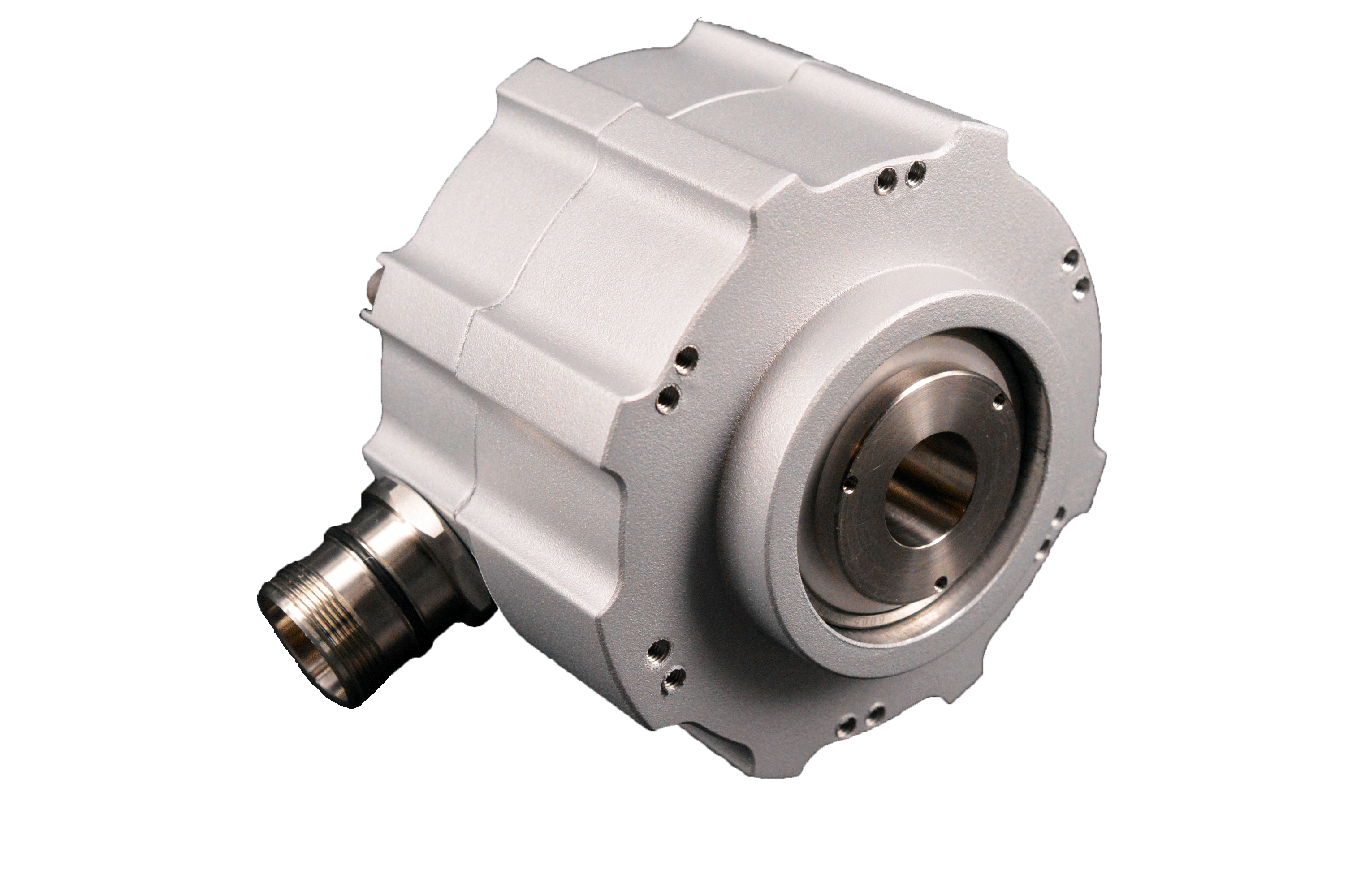

SCH98M

Hollow bore
Diameter: 98 mm
Resolution: up to 8192 ppr
Hollow Shaft: ø 12 mm to ø 17 mm
Temperature: -40° C to +105° C (operating)
IP rating: 66

SCH98M-01

Hollow bore
Diameter: 98 mm
Resolution: up to 8192 ppr
Hollow Shaft: ø 12 mm to ø 17 mm
Temperature: -40° C to +105° C (operating)
IP rating: 66
