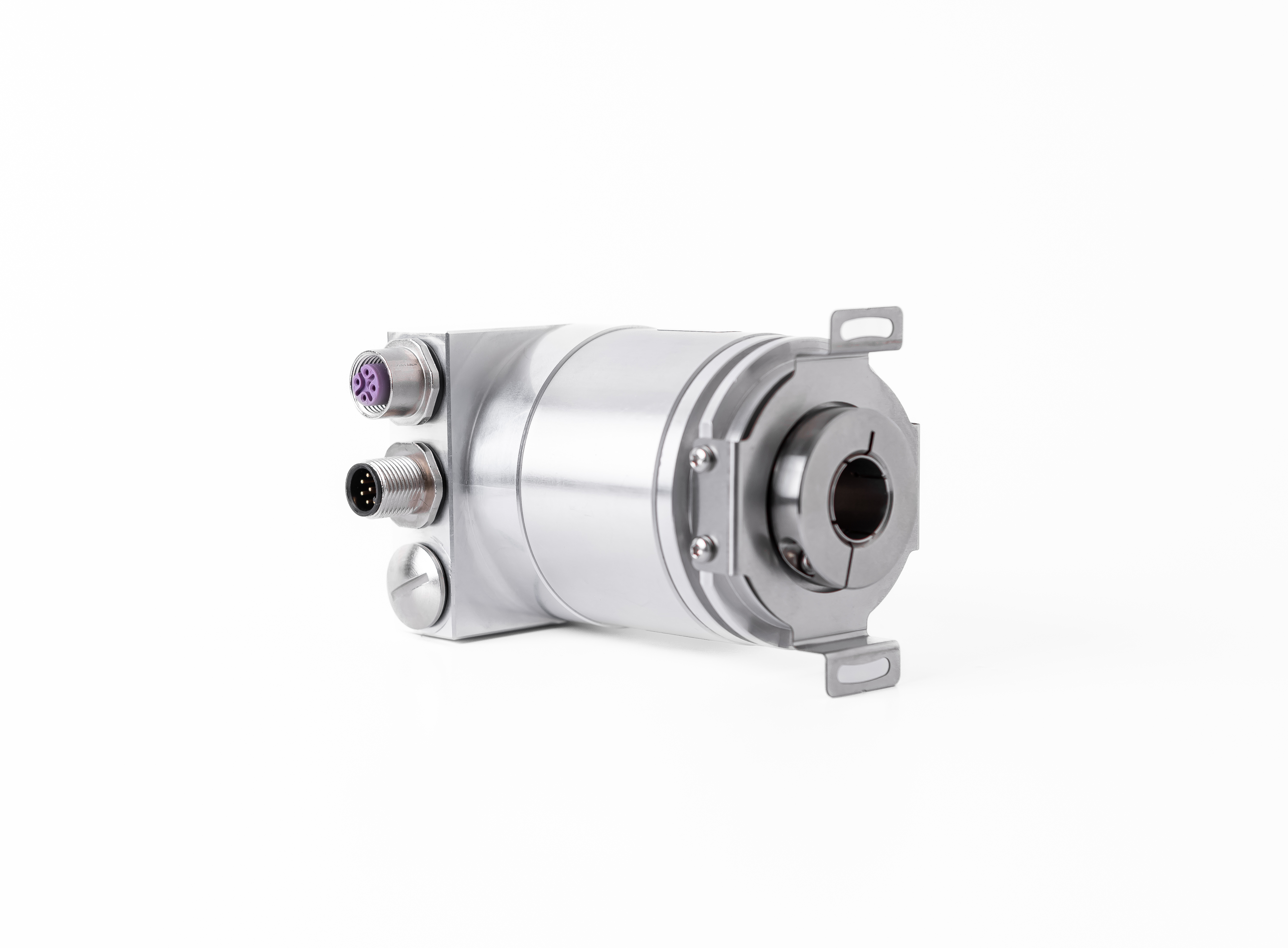

SAG / SCU
Optical / Magnetic| Diameter: | 58 mm | |
| Resolution: | Up to 16 bits (Singleturn) Up to 30 bits (Multiturn) | |
| Hollow Shaft: | ø 6 mm up to ø 15 mm | |
| Temperature: | -40° C to 85° C (operating) | |
| Protocol: | SSI, CANOpen, DeviceNet, EtherCat, ModBus, Profibus, Profinet, Profisafe, Powerlink, BitParallel |
SAG SSI
| Diameter: | 58 mm | |
| Resolution: | Up to 16 bits (Singleturn) Up to 30 bits (Multiturn) | |
| Shaft: | ø 12 mm | |
| Protocol: | SSI | |
| Temperature: | -40° C to 85° C (operating) |
SAG Profibus
| Diameter: | 58 mm | |
| Resolution: | Up to 16 bits (Singleturn) Up to 30 bits (Multiturn) | |
| Shaft: | ø 15 mm | |
| Protocol: | Profibus | |
| Temperature: | -40° C to 85° C (operating) |

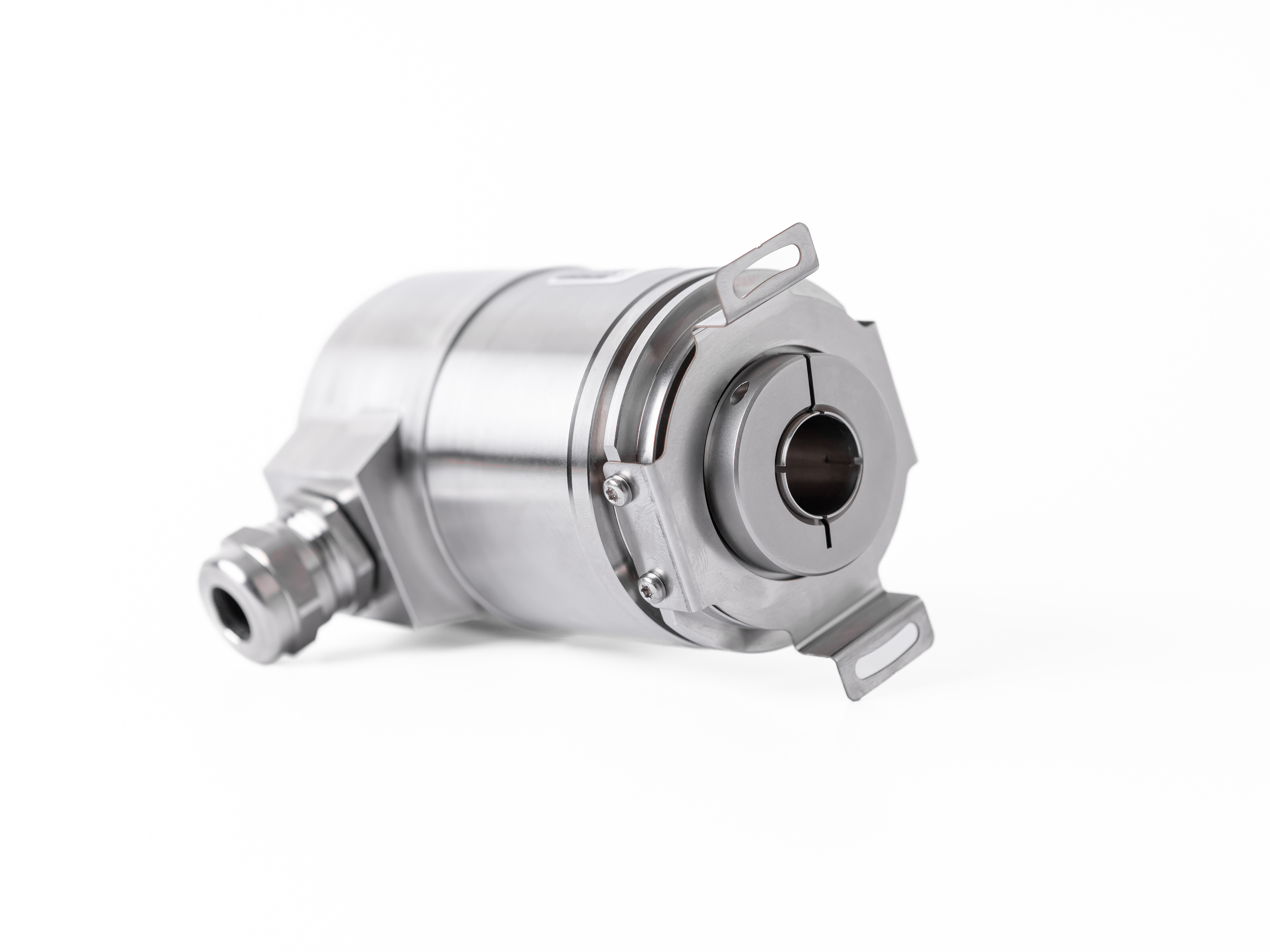

SAG CANopen
| Diameter: | 58 mm | |
| Resolution: | Up to 16 bits (Singleturn) Up to 30 bits (Multiturn) | |
| Shaft: | ø 12 mm or ø 15 mm | |
| Protocol: | CANopen | |
| Temperature: | -40° C to 85° C (operating) |
SCH50IF-NA-SSI
Other interfaces contact our salesdeprt.| Diameter: | 50 mm | |
| Resolution: | up to 9,000 ppr | |
| Hollow Shaft: | ø 3/8 in to 16 mm | |
| Temperature: | -40° C to 85° C (operating) | |
| IP rating: | 65 (66 & 67 options) |
