SCH68B
through hollow bore| Diameter: | 68 mm | |
| Resolution: | up to 12,500 ppr | |
| Hollow Shaft: | ø 16 mm to 1 in | |
| Temperature: | -40° C to 85° C (operating) | |
| IP rating: | 65 (66 & 67 option) |

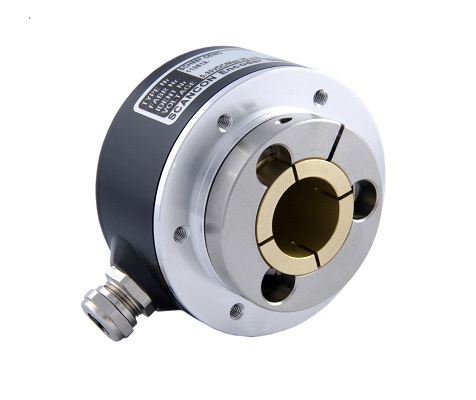

SCH68F
| Diameter: | 68 mm | |
| Resolution: | up to 12,500 ppr | |
| Hollow Shaft: | ø 20 mm and 1 in | |
| Temperature: | -40° C to 85° C (operating) | |
| IP rating: | 65 (66 & 67 option) |
SCH68DW
through hollow bore w/ adaptor| Diameter: | 68 mm | |
| Resolution: | up to 12,500 ppr | |
| Hollow Shaft: | ø 20 mm and 1 in | |
| Temperature: | -40° C to 85° C (operating) | |
| IP rating: | 65 (66 & 67 option) |
SCH68SUB (SUBSEA)
| Diameter: | 68 mm (hollow bore) | |
| Resolution: | up to 4096 ppr | |
| Hollow Shaft: | ø 20 mm and 1 in | |
| Temperature: | -10° C to 70° C (operating) | |
| IP rating:: | IP 68 to 6000 m depth |
SCH80
| Diameter: | 80 mm | |
| Resolution: | up to 12,500 ppr | |
| Hollow Shaft: | ø 16 mm | |
| Temperature: | -40° C to 85° C (operating) | |
| IP rating: | 66 (65 & 67 option) |
SCH94
Cylindrical and cone - Screw mount| Diameter: | 94 mm | |
| Resolution: | up to 12,500 ppr | |
| Hollow Shaft: | ø 12 mm to 17 mm | |
| Temperature: | -40° C to 85° C (operating) | |
| IP rating: | 66 (65 & 67 options) |
SCH94DOL
Dual output (redundant electronic)| Diameter: | 94 mm | |
| Resolution: | up to 12,500 ppr | |
| Hollow Shaft: | ø 16 mm | |
| Temperature: | -40° C to 85° C (operating) | |
| IP rating: | 66 (65 & 67 option) |
SCH94L
Deep hollow bore - Front mounted| Diameter: | 94 mm | |
| Resolution: | up to 12,500 ppr | |
| Hollow Shaft: | ø 16 mm | |
| Temperature: | -40° C to 85° C (operating) | |
| IP rating: | 66 (65 & 67 option) |
SCH120M
Magnetic| Length: | 120 mm | |
| Resolution: | up to 8192 ppr | |
| Temperature: | -40° C to +105° C (operating) | |
| IP rating: | 66 |
SCH98M
Hollow bore| Diameter: | 98 mm | |
| Resolution: | up to 8192 ppr | |
| Hollow Shaft: | ø 12 mm to ø 17 mm | |
| Temperature: | -40° C to +105° C (operating) | |
| IP rating: | 66 |
SCH98M-01
Hollow bore| Diameter: | 98 mm | |
| Resolution: | up to 8192 ppr | |
| Hollow Shaft: | ø 12 mm to ø 17 mm | |
| Temperature: | -40° C to +105° C (operating) | |
| IP rating: | 66 |
