Ex-Proof Encoders
2REX-A-AN (Analog)
| Diameter: | 68 mm | |
| Output: | 0 - 20 mA or 4 - 20 mA | |
| Shaft: | 10 mm | |
| Temperature: | -40° C to 70° C (operating) | |
| Certifications: | Ex db IIC |
2REX-A-NA SSI
| Diameter: | 68 mm | |
| Resolution: | Up to 13 bits (Singleturn) Up to 37 bits (Multiturn) | |
| Shaft: | 10 mm | |
| Temperature: | -40° C to 70° C (operating) | |
| Protocol: | SSI | |
| Certifications: | Ex db IIC |
2QEX-A SSI
| Diameter: | 2.5 in or 2.65 in square | |
| Resolution: | Up to 13 bits (Singleturn) Up to 37 bits (Multiturn) | |
| Shaft: | ø 1/4 in to 10 mm | |
| Temperature: | -40° C to 70° C (operating) | |
| IP rating: | 67 | |
| Certifications: | Ex nA IIC |
2CEX-A SSI
| Diameter: | 68 mm | |
| Resolution: | up to 13 bits (singleturn) Up to 37 bits (Multiturn) | |
| Shaft: | ø 10 mm | |
| Temperature: | -40° C to 70° C (operating) | |
| Protocol: | SSI | |
| Certifications: | Ex nA IIC |
EXAG-A SSI
| Diameter: | 78 mm | |
| Resolution: | Up to 16 bits (Singleturn) Up to 30 bits (Multiturn) | |
| Shaft: | 10 mm | |
| Temperature: | -40° C to 70° C (operating) | |
| Protocol: | SSI | |
| Certifications: | Ex db IIC Class I, Div.2, Zone 1 |
EX78-A ProfiBus
| Diameter: | 78 mm | |
| Resolution: | Up to 31 bits | |
| Shaft: | Ø 10 mm to Ø 12 mm | |
| Temperature: | -40° C to 70° C (operating) | |
| Protocol: | ProfiBus | |
| Certifications: | Ex db IIC Class I, Div.2, Zone 1 |
EX78-A Dual Output ProfiBus/Incremental
| Diameter: | 78 mm | |
| Resolution: | Up to 31 bits | |
| Shaft: | Ø 10 mm to Ø 12 mm | |
| Temperature: | -40° C to 70° C (operating) | |
| Protocol : | ProfiBus & Incremental | |
| Certifications: | Ex db IIC Class I, Div.2, Zone 1 |
EXAG-A ProfiBus
| Diameter: | 78 mm | |
| Resolution: | Up to 16 bits (Singleturn) Up to 30 bits (Multiturn) | |
| Shaft: | 10 mm | |
| Temperature: | -40° C to 70° C (operating) | |
| Protocol: | ProfiBus | |
| Certifications: | Ex db IIC Class I, Div.2, Zone 1 |
EXAG-A CANopen
| Diameter: | 78 mm | |
| Resolution: | Up to 16 bits (Singleturn) Up to 30 bits (Multiturn) | |
| Shaft: | 10 mm | |
| Temperature: | -40° C to 70° C (operating) | |
| Protocol: | CANopen | |
| Certifications: | Ex db IIC Class I, Div.2, Zone 1 |
EXAG-A DeviceNet
| Diameter: | 78 mm | |
| Resolution: | Up to 16 bits (Singleturn) Up to 30 bits (Multiturn) | |
| Shaft: | 10 mm | |
| Temperature: | -40° C to 70° C (operating) | |
| Protocol: | DeviceNet | |
| Certifications: | Ex db IIC Class I, Div.2, Zone 1 |
EXAG-A Dual Output ProfiBus/incremental
EXAG-A Dual Output ProfiBus/incremental| Diameter: | 78 mm | |
| Resolution: | Up to 16 bits (Singleturn) Up to 30 bits (Multiturn) | |
| Shaft: | 10 mm | |
| Temperature: | -40° C to 70° C (operating) | |
| Protocol: | ProfiBus & Incremental | |
| Certifications: | Ex db IIC Class I, Div.2, Zone 1 |
EXAG-A Ethernet Modbus with Cable
| Diameter: | 78 mm | |
| Resolution: | Up to 16 bits (Singleturn) Up to 30 bits (Multiturn) | |
| Shaft: | 10 mm | |
| Temperature: | -40° C to 70° C (operating) | |
| Protocol: | Ethernet | |
| Certifications: | Ex db IIC |
EXAG-A ProfiBus with Cable
| Diameter: | 78 mm | |
| Resolution: | Up to 16 bits (Singleturn) Up to 30 bits (Multiturn) | |
| Shaft: | 10 mm | |
| Temperature: | -40° C to 70° C (operating) | |
| Protocol: | ProfiBus | |
| Certifications: | Ex db IIC |
EXAG-A Profinet
| Diameter: | 78 mm | |
| Resolution: | Up to 16 bits (Singleturn) Up to 30 bits (Multiturn) | |
| Shaft: | 10 mm | |
| Temperature: | -40° C to 70° C (operating) | |
| Protocol: | Ehternet Profinet | |
| Certifications: | Ex db IIC Class I, Div.2, Zone 1 |
EXAG-A SIL2
Functional Safety| Diameter: | 78 mm | |
| Resolution: | Up to 13 bits (Singleturn) Up to 25 bits (Multiturn) | |
| Shaft: | 10 mm | |
| Temperature: | -40° C to 70° C (operating) | |
| Protocol: | SIL2 (Profisafe via Profinet) | |
| Certifications: | Ex db IIC, Class I, Div.2, Zone 1 |

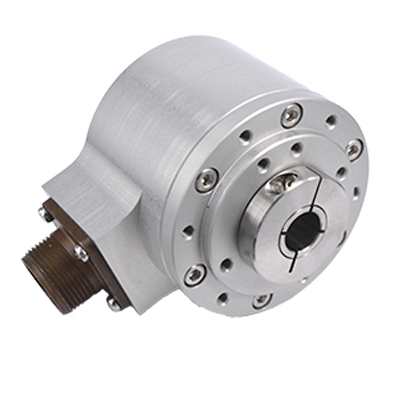

2CEX-H SSI
| Diameter: | 68 mm | |
| Resolution: | up to 13 bits (singleturn) up to 37 bits (multiturn) | |
| Shaft: | ø10 mm and ø16 mm | |
| Temperature: | -40° C to 70° C (operating) | |
| Protocol: | SSI | |
| Certifications: | Ex nA IIC |
2REX-H-AN (Analog)
IP rating| Diameter: | 68 mm | |
| Output: | 0 - 20 mA or 4 - 20 mA | |
| Hollow Shaft: | Ø 10 mm to Ø15 mm | |
| Temperature: | -40° C to 70° C (operating) | |
| IP rating: | 66 (67) option) | |
| Certifications: | Ex db IIC |

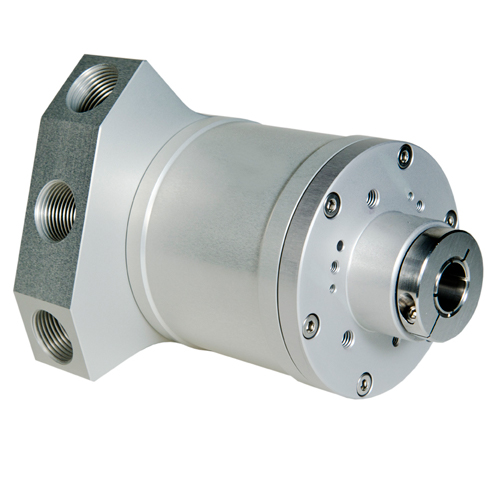

EXAG-H-SSI
| Diameter: | 78 mm | |
| Resolution: | Up to 16 bits (Singleturn) Up to 30 bits (Multiturn) | |
| Hollow Shaft: | ø 14 mm and ø 16 mm | |
| Temperature: | -40° C to 70° C (operating) | |
| Protocol: | SSI | |
| Certifications: | Ex db IIC Class I, Div.2, Zone 1 |
EX78-H Profibus
| Diameter: | 78 mm | |
| Resolution: | Up to 31 bits | |
| Hollow Shaft: | ø 14 mm and ø 1 inch | |
| Temperature: | -40° C to 70° C (operating) | |
| Protocol: | Profibus | |
| Certifications: | Ex db IIC Class I, Div.2, Zone 1 |
EX78-H Dual Output ProfiBus/Incremental
| Diameter: | 78 mm | |
| Resolution: | Up to 31 bits | |
| Hollow Shaft: | ø 14 mm and ø 1 inch | |
| Temperature: | -40° C to 70° C (operating) | |
| Protocol: | Profibus & Incremental | |
| Certifications: | Ex db IIC Class I, Div.2, Zone 1 |
EXAG-H ProfiBus
| Diameter: | 78 mm | |
| Resolution: | Up to 16 bits (Singleturn) Up to 30 bits (Multiturn) | |
| Hollow Shaft: | ø 14 mm to ø 1 inch | |
| Temperature: | -40° C to 70° C (operating) | |
| Protocol: | ProfiBus | |
| Certifications: | Ex db IIC Class I, Div.2, Zone 1 |
EXAG-H CANopen
| Diameter: | 78 mm | |
| Resolution: | Up to 16 bits (Singleturn) Up to 30 bits (Multiturn) | |
| Hollow Shaft: | ø 14 mm and ø 16 mm | |
| Temperature: | -40° C to 70° C (operating) | |
| Protocol: | CANopen | |
| Certifications: | Ex db IIC Class I, Div.2, Zone 1 |
EXAG-H DeviceNet
| Diameter: | 78 mm | |
| Resolution: | Up to 16 bits (Singleturn) Up to 30 bits (Multiturn) | |
| Temperature: | -40° C to 70° C (operating) | |
| Hollow Shaft: | ø 14 mm and ø 16 mm | |
| Protocol: | DeviceNet | |
| Certifications: | Ex db IIC Class I, Div.2, Zone 1 |
EXAG-H Dual Output ProfiBus/incremental
| Diameter: | 78 mm | |
| Resolution: | Up to 16 bits (Singleturn) Up to 30 bits (Multiturn) | |
| Hollow Shaft: | ø 14 mm and ø 16 mm | |
| Temperature: | -40° C to 70° C (operating) | |
| Protocol: | Profibus & Incremental | |
| Certifications: | Ex db IIC Class I, Div.2, Zone 1 |
EXAG-H ProfiBus with Cable
| Diameter: | 78 mm | |
| Resolution: | Up to 16 bits (Singleturn) Up to 30 bits (Multiturn) | |
| Hollow Shaft: | ø 10 mm | |
| Temperature: | -40° C to 70° C (operating) | |
| Protocol: | ProfiBus | |
| Certifications: | Ex db IIC |
EXAG-H-Profinet
| Diameter: | 78 mm | |
| Resolution: | Up to 16 bits (Singleturn) Up to 30 bits (Multiturn) | |
| Hollow Shaft: | ø14 mm to ø1 inch | |
| Temperature: | -40° C to 70° C (operating) | |
| Protocol: | Profinet | |
| Certifications: | Ex db IIC Class I, Div.2, Zone 1 |

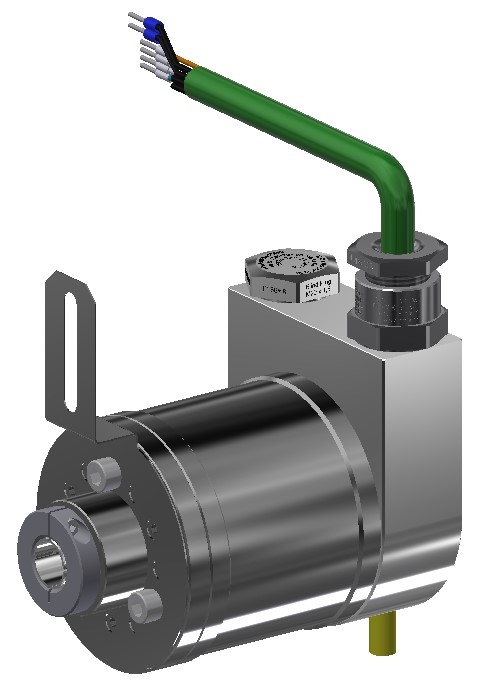

EXAG-H Ethernet Modbus with cable
| Diameter: | 78 mm | |
| Resolution: | Up to 16 bits (Singleturn) Up to 30 bits (Multiturn) | |
| Temperature: | -40° C to 70° C (operating) | |
| Hollow Shaft: | Ø14 mm to Ø1 inch | |
| Protocol: | Modbus TCP/IP, Modbus TCP | |
| Certification: | Ex db IIC |
EXAG-H SIL2
| Diameter: | 78 mm | |
| Resolution: | Up to 13 bits (Singleturn) Up to 25 bits (Multiturn) | |
| Hollow Shaft: | ø14 mm to ø1 inch | |
| Temperature: | -40° C to 70° C (operating) | |
| Protocol: | SIL2 Profisafe via Profinet | |
| Certifications: | Ex db IIC, Class I, Div.2, Zone 1 |

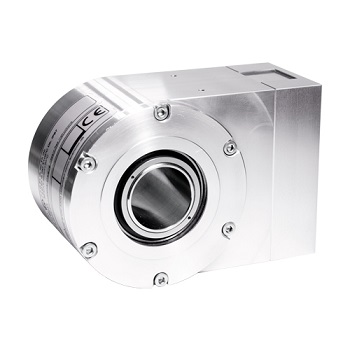

SCH88BEX - Profibus
| Diameter: | 89 mm | |
| Resolution: | Up to 16 bits (Singleturn) / Up to 31 bits (Multiturn) | |
| Hollow Shaft: | ø 25 mm to ø 30 mm (1.18 in) | |
| Temperature: | -40° C to 75° C (operating) | |
| IP rating: | 67 (65 & 66 option) | |
| Protocol: : | Profibus | |
| Certifications: | Ex db IIC Class I Div. 1, Zone 1, Zone 21 |
SCH108BEX - Profibus
| Diameter: | 108 mm | |
| Resolution: | Up to 16 bits (Singleturn) Up to 31 bits (Multiturn) | |
| Hollow shaft: | ø 25 mm to 1 1/4 in | |
| Temperature: | -40° C to 70° C (operating) | |
| Protocol: | ProfiBus | |
| Certifications: | Ex db IIB HB+H2 Class I, Div. 1, Zone 1 |
